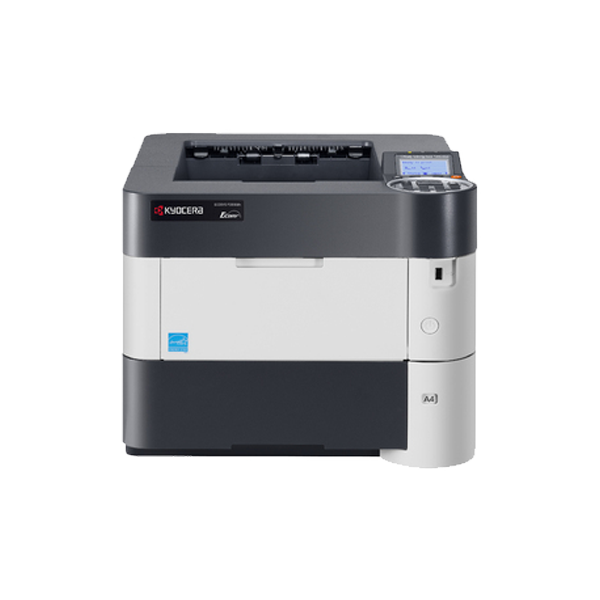

Monochrome printer for A4 formats
KYOCERA ECOSYS Laser
Up to 50 pages per minute in A4 and A5
Approx. 20 seconds or less from power on
Time to first print
Approx. 6.2 seconds or less
Dimensions (W x D x H)
380 x 416 x 320 mm, 396 mm x 421 mm x 342 mm incl. roundings
Main unit incl. toner: Approx. 15.5 kg
Printing: 636 W, Ready mode: 11 W, Sleep mode: 0.9 W,
220/240 V, 50 Hz
Noise (ISO 7779)
(Sound pressure level: ISO 7779 / ISO 9296) Printing: 53.2 dB(A) LpA, Quiet Mode: 50.8 dB(A) LpA, Ready mode: 26.9 dB(A) LpA, Sleep mode: Immeasurably low
TÜV-GS, CE This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
Standard 512 MB RAM, max. 2,560 MB RAM
100-sheet multi-purpose tray; 60–220 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 – 216 x 356 mm), Banner ( up to 216 x 915 mm,120 – 163 g/m²); 500-sheet universal paper cassette, 60–120 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 – 216 x 356 mm)
Max. input capacity with options
Duplex functionality as standard: Double-sided printing A4, A5, B5, Letter, Legal, Custom (140 x 210 mm – 216 x 356 mm), 60–120 g/m²
Max. output capacity
500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320
General paper handling
All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.
PCL6 (PCL5c / PCL-XL), PostScript* 3 (KPDL 3), XPS Direct Print, PDF Direct Print 1.7, IBM Proprinter X24E, Epson LQ-850 with automatic emulation sensing
93 scalable fonts for PCL/PostScript®, 8 fonts for Windows Vista®, 1 Bitmap font, 45 barcodes (e.g. EAN 8, EAN 13, EAN 128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Security features: IPSec, HTTPS, SNMPv3, IPPS, Encrypted PDF Direct Print, Private Print, Secure printing via SSL, POP over SSL, SMTP over SSL, Access control via 100 integrated department codes. Data Security Kit (E) protects data on the optional SSD.
Mobile printing support: KYOCERA Mobile Print app for iOS and Android, AirPrint (requires firmware update),Mopria, Google Cloud Print
All current Windows operating systems, Mac OS X Version 10.8 or higher, UNIX, LINUX as well as other operating systems on request
USB 2.0 (Hi-Speed), 2 USB Host Interfaces, Gigabit Ethernet (10/100/1000BaseT), Slot for optional internal print server or SSD hard disc, Slot for optional SD/SDHC-Card
1-year warranty as standard (depending on the country). KYOCERA guarantees the drums and developers for 3 years or maximum 500,000 pages (whichever occurs sooner), provided the printer is used and cleaned in accordance with the service instructions.
