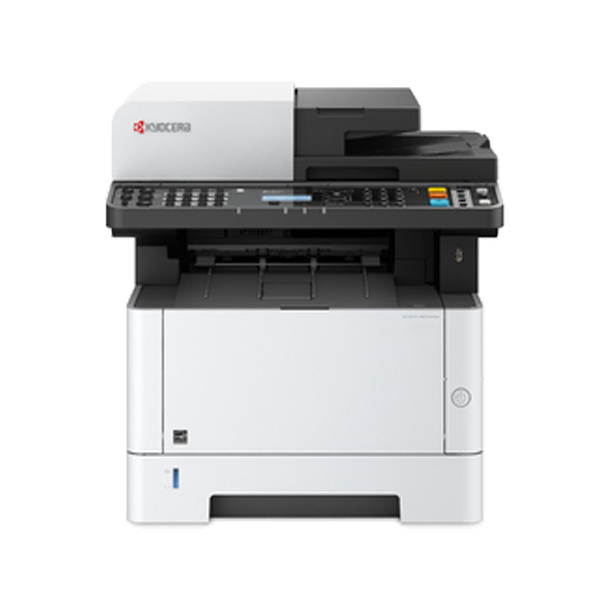

ECOSYS M2540dn
ECOSYS M2540dn
This devices are ready to become key players in your office. With a print speed of 40 pages per minute, short first print and first copy times and professional scanning features, including simultaneous scanning of both document sides, they will surely help boost the productivity in their respective workgroups. Their low TCO makes them a very affordable and reasonable choice. Toner and paper capacity are equally impressive too, with up to 7,200 pages from one toner cartridge and up to 850 pages with two optional paper feeders. And as is to be expected from any KYOCERA device, they are extremely reliable, meaning you can stay productive as long as you need to.
Key Features
- Up to 40 pages per minute in A4
- Time to first copy and first print 6.4 sec.
- Dual scan document processor supporting A6 originals
- 1,200 dpi printing resolution
- Duplex unit for cost-saving double-sided printing
- Up to 2 optional paper feeders for up to 850 sheets
- Compact design with low-noise printing
- Exceptionally low printing costs in its class
General
General Type
B/W multifunctionals for A4 format
Technology
KYOCERA Laser, Mono component
Engine speed
Up to 40 pages A4 per minute
Resolution
300 dpi, 600 dpi, 1,200 dpi
Warm-up time
Approx. 17 or less
Time to first print
Approx. 6.4 seconds or less
Time to first copy
Approx. 6.4 seconds or less
Dimensions (W x D x H)
Main unit: 417 x 412 x 437 mm
Weight
Main unit: Approx. 19 kg
Power consumption
Copying/Printing: 661 W, Ready-mode: 21 W, Sleep-mode: 1 W
Power source
AC 220 ~ 240 V, 50 Hz
Noise (ISO 7779)
Noise (sound pressure level ISO 7779 / ISO 9296) Copying/Printing: 48.3 dB(A) LpA, Quiet mode: 44.1 dB(A) LpA, Stand-by: Immeasurably low Sleep mode: Immeasurably low
Safety standards
TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory
Standard 512 MB, max. 1,536 MB
Paper Handling
Input capacity
100-sheet multi-purpose tray; 60 – 220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 – 216 x 356 mm)
Max. input capacity with options
850 sheets
Duplex unit
Duplex functionality as standard: Double-sided printing: 60 – 163 g/m²; A4, A5, B5, Letter, Legal
Max. output capacity
Max. 150 sheet face down with paper full detection
Document processor
Dual scan document processor: 50-sheet, 50 –1 60 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (100 x 148 to 216 x 356 mm)
General paper handling
All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.
Processor
800 MHz
Controller language
PRESCRIBE IIe
Emulations
PCL 6 (PCL 5e/PCL-XL), PostScript 3 (KPDL 3), PDF Direct Print, XPS/OpenXPS
Fonts
93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Applicable OS
All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request
Copy
Max. original size
A4/Legal
Digital copy features
Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control
Exposure modes
Manual: 9 steps
Preset magnification ratios
7 Reductions/5 Enlargements
Zoom range
25 - 400 % in 1 % steps
Continuous copy
1 - 999 (when optional memory installed)
Image adjustments
Text + Photo, Photo, Text, Map
Scan
Compression format
MMR/JPEG
File type
TIFF, PDF, PDF/A-1 , high compression PDF, encrypted PDF, JPEG, XPS
Scan features
Integrated address book, LDAP, encrypted data transfer, Blank sheet skip
Original recognition
Text + Photo, Photo, Text, Light Text/ Fine Line, Text (for OCR)
Max. scan size
A4(Platen), Legal(DP)
Scan functionalities
Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMBv3, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
Scan resolution
300dpi x 300dpi, 200dpi x 200dpi(Default) , 200dpi x 100dpi , 600dpi x 600dpi, 400dpi x 400dpi , 200dpi x 400dpi
Scan speed
40 ipm (300 dpi, A4, B/W, simplex); 23 ipm (300 dpi, A4, colour, simplex), 32 ipm (300 dpi, A4, b/w, duplex), 16 ipm (300 dpi, A4, colour, duplex)
Fax
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2 seconds /sheet or less
Transmission speed
3 seconds or less
Scanning density
Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi
Max. original size
A4 / Legal
Compression method
JBIG, MMR, MR, MH
Fax features
Network fax, duplex transmission and reception, polling transmission and reception
Interfaces
Standard interface
USB 2.0 (Hi-Speed), USB Host (High Speed), 10 Base-T/100 Base-TX/1000 Base-T, slot for optional SD/SDHC-Card
Warranty
Warranty
1-year warranty (depending on the country) as standard. KYOCERA guarantees the drum and developer for 3 years or 100,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
