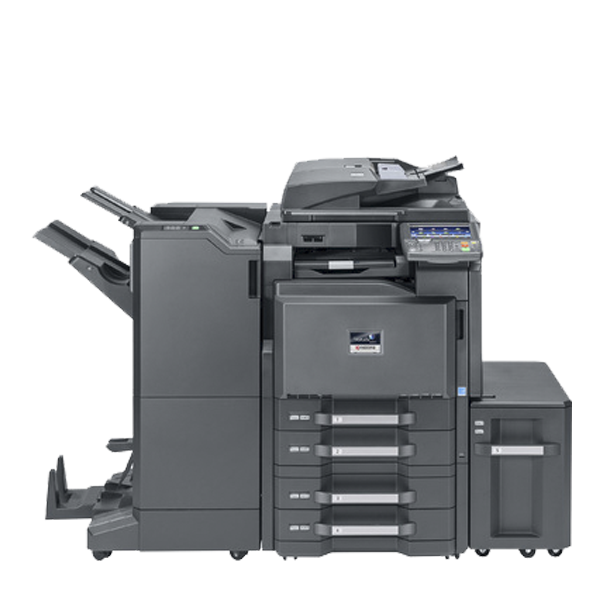

TASKalfa 5501i

TASKalfa 5501i

The TASKalfa 5501i brings professional document imaging into the office, delivering high-quality functionality that gets the job done quickly and cost-effectively with clean, sharp black & white output, advanced finishing options, and powerful and scalable integrated business applications streamline your workflow.

Key Features

  • Up to 55 pages per minute A4 in b/w
  • 2 GB RAM, storage capacity of 160 GB HDD
  • Standard network printing and colour scanning
  • Expandable fax functions of dual fax, network fax, and internet fax
  • Optional scan to searchable PDF solution (OCR)
  • Individual paper-handling options including booklet and tri-folding
  • Comprehensive security functions including optional IC Card Reader
  • Long-life components provide unprecedented efficiency and reliability
General
General Type
Monochrome multifunctional for A3 format
Technology
KYOCERA Laser Monochrome, HyPAS™ solution platform
Engine speed
Up to 55/27 pages per minute A4/A3
Resolution
600x600 dpi, Multi-bit technology for print quality of 9,600 dpi equivalent x 600 dpi
Warm-up time
Approx. 23 seconds or less
Time to first copy
Approx. 3.2 seconds or less
Dimensions (W x D x H)
Main unit: 668 x 767 x 747 mm
Weight
Main unit: Approx. 82 kg
Power consumption
Printing: 890 W, Ready-mode: 170 W, Sleep-mode: recovery priority 8.4 W, Energy saving priority 1.8 W
Power source
AC 220 V – 240 V, 50/60 Hz
Noise (ISO 7779)
Noise (sound pressure level ISO 7779/ISO 9296) Printing: 51.4 dB(A) LpA, Stand-by: 33.6 dB(A) LpA
Safety standards
GS, TÜV, CE - This unit is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard. RoHS compatibility
General memory
2048 MB RAM + 160 GB HDD

Paper Handling
Input capacity
150-sheet multi-purpose tray, 60–300 g/m², (banner 136-163 g/m²), A6R -305 x 457 mm, Tab paper (136 - 256 g/m²), Banner max. 305 x 1,220 mm; 2 x 500-sheet universal paper cassette, 60-220 g/m², 140 x 182-305 x 457 mm
Max. input capacity with options
7,150 sheets A4
Duplex unit
Duplex as standard supports A5R-305 x 457 mm, 60–256 g/m²
Max. output capacity
250 sheets face-down, max. output capacity 4,300 sheets
Paper size
60–300 g/m², A6R-305 x 457 mm, Banner max. 305 x 1,220 mm
General paper handling
All paper capacities quoted are based on paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Print
Processor
Freescale QorIQ P1022 (Dual Core) 800MHz
Controller language
PRESCRIBE IIe
Emulations
PCL 6 (PCL5c / PCL-XL), KPDL3 (Postscript 3 compatible), XPS Direct print, PDF Direct print
Fonts
93 outline fonts (PCL ), 136 fonts (KPDL3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes plus two-dimensional barcode (PDF-417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMv3, Quick copy, proof and hold, Private Print, job storage and job management functionality
Applicable OS
All current Windows operating systems, Mac OS X Version 10.4 or higher, UNIX LINUX , as well as other operating systems on request.

Copy
Max. original size
A3
Digital copy features
Scan-once-copy-many, electronic sort, 2in1 and 4in1 function, image repeat copy, page numbering, cover mode, booklet copy, interrupt copy, form overlay, stamp function and skip blank page function
Exposure modes
Auto, manual: 7 or 13 steps
Preset magnification ratios
5 Reductions/5 Enlargements
Zoom range
25 - 400 % in 1 % steps
Continuous copy
1 - 999
Image adjustments
Text, Photo, Text + Photo, Map

Scan
File type
PDF (high compressive, encrypted, PDF/A), Searchable PDF (option), JPEG, TIFF, XPS
Original recognition
Text, Photo, Text + Photo, optimized for OCR
Max. scan size
A3
Scan functionalities
Scan-to-email, Scan-to-FTP, Network TWAIN, Scan-to-SMB, Scan-to-BOX, Scan-to-USB Host, WSD scan
Scan resolution
600 dpi, 400 dpi, 300 dpi, 200 dpi, 200x100 dpi, 200x400 dpi, (256 greyscales)
Scan speed
Colour: 80 images per minute, b/w: 160 image per minute, (A4, 300dpi with DP-772)

Fax
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Transmission speed
Max. 3 seconds (JBIG)
Scanning density
Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi
Max. original size
A3
Compression method
JBIG, MMR, MR, MH
Memory
Standard 12 MB, max. 128 MB
Fax features
Opt. Internet-fax, network faxing, rotate transmission, rotate reception, duplex fax reception, memory reception, mailbox, remote diagnostics, dual fax with second fax system

Interfaces
Standard interface
USB 2.0 (Hi-Speed), USB Host 2.0, Fast Ethernet 10Base-T/100BaseTX/1000BaseT, slot for optional print server, slot for optional SD-card, slot for optional Fax System
